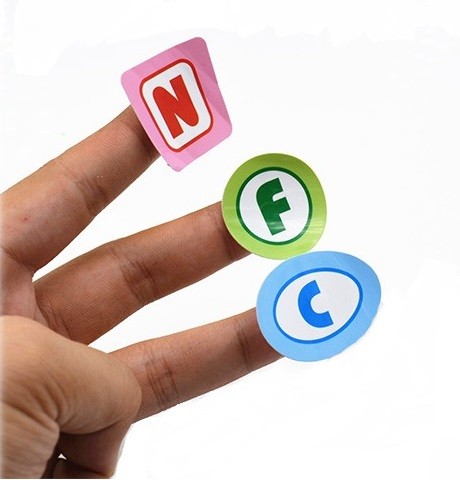

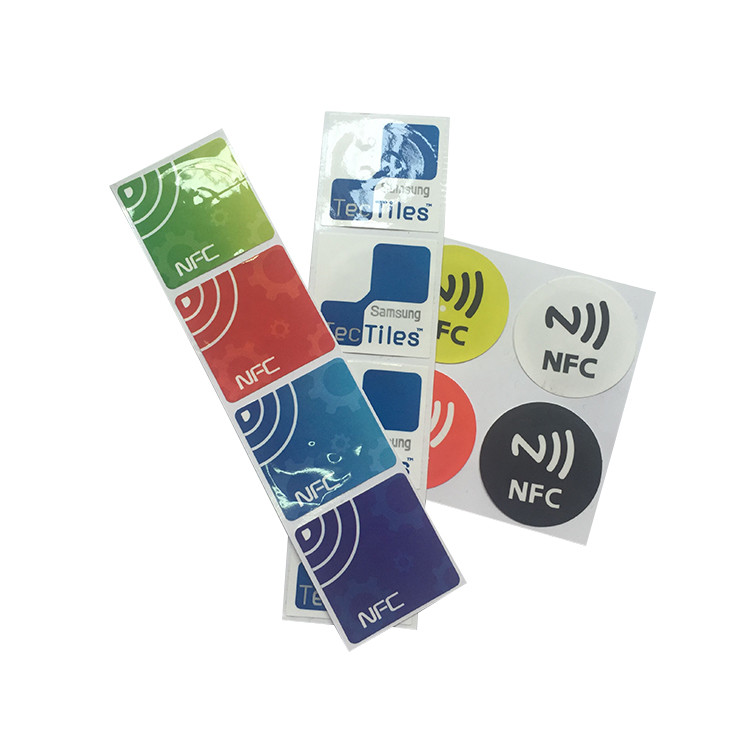

Custom Printing 13.56mhz 213 / 215 NFC tag sticke 1-10cm Reading distance

Product description

Benifits:

• Long read range due to high chip sensitivity
• Ease of tag assembly due to high chip input capacitance
• Consistent performance on different materials
• Reliable operation in multi-reader environment
• Prevention of unauthorized memory access due to
• read protection
• Wide temperature range: -40°C up to +85°C

RFID Ultralight EV1

Features

• Contactless transmission of data and supply energy
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• True anticollision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• Typical ticketing transaction: < 35 ms
• Fast counter transaction: < 10 ms

• 640-bit or 1312-bit, organized in 20 or 41 pages with 4 bytes per page
• First 512 bits compatible to MF0ICU1
• Field programmable read-only locking function per page for the first 512 bits
• Field programmable read-only locking function per 2 pages above page 15
• 32-bit user definable One-Time Programmable (OTP) area
• 384-bit or 1024-bit freely available user Read/Write area (12 or 32 pages)
• 3 independent, true one-way 24-bit counters on top of the user area
• Anti-tearing support for counters, OTP area and lock bits
• Configurable password protection with optional limit of unsuccessful attempts
• ECC based originality signature
• Data retention time of 10 years
• Write endurance 100.000 cycles
• Write endurance for one-way counters 1.000.000 cycles

Company capacity

We always focused on providing to end users and distributors with the better products, faster delivery and more favorable price. We offer products as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.

WHITE SMART TECHNOLOGY is a market leader in the implementation of smart cards and associated products. Having shipped over 100 million products worldwide, we are able to offer clients a vast array of Hotel key card,woodend smart cards and accessories, together with RFID wristbands and RFID key fobs, plus RFID labels tags,readers and so on!

Our production facilities take advae of the latest technology-sourced from around the world. This approach lends itself to working closely with international organisations to bring home manufacturing techniques and products that enable us to pass on the latest innovations to our customers. With our international connections you can be guaranteed access to the latest technology the world of plastic cards has to offer.

We enjoys relationships with the leading lock vendors. This means you have the confidence and comfort of getting the same original quality as your lock supplier.But at direct manufacturer costs and faster response times.Our products are compatible with all major lock manufacturers, including Saflok, Kaba Ilco, Onity, Miwa, and Ving. RFID Hotel key cards and RFID credentials are manufactured to ISO (International Standards Organization) quality. Our RFID cards and credentials provide accurate and quick reads because we use the best high frequency transmitting chips available.

We are also professional and experienced for customized tags ,that will help the customers to solve special and difficult RFID applications. After years of technology research and development, we have made much great breakthrough in antenna design, solution development and automation equipment, especially in EAS/RFID dual frequency tags,RFID tire tag,high temperature metal tag, flexible metal tag, laundry tags,jewelry tags,etc.

WHITE SMART possesses deep expertise in NFC technology, which allows devices to communicate by simply bringing them close together. we understand the intricacies and capabilities of NFC and leverage this knowledge to provide cutting-edge solutions.our solutions encompass NFC tags, cards, readers, and software applications that enable businesses to integrate NFC technology seamlessly into needed products or services.

Our Solutions caters to a wide range of industries, including retail, transportation, healthcare, and access control. We provide industry-specific NFC solutions that address the unique challenges and requirements of each sector, unlocking new possibilities and enabling businesses to stay ahead of the curve.
