    TCP RFID Proximity POE Card Reader Writer With LCD Screen Desktop Usage

    TCP RFID Proximity POE Card Reader Writer 13.56MHZ With LCD Screen Desktop Device


    1. Overview:

    TCP reader is using TCP / IP communication, the reader can be set IP address of the web page by the way, or to set the IP address and other parameters via data commands. The reader can read series-compatible card data through instruction, and is set to take the initiative to upload the card's serial number or card directly read and write data. The reader can customize the text that appears on the LCD screen, the reader has a controllable buzzer.

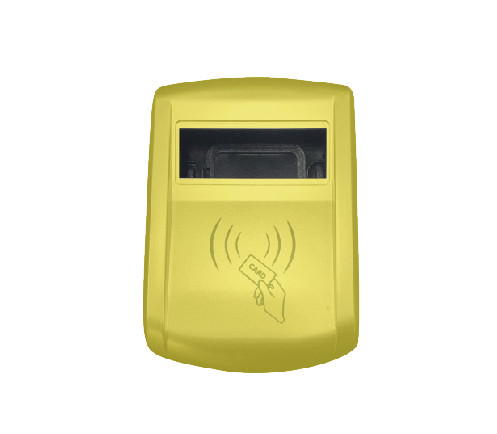

    POE Card Reader


    Power supply:POE


    2.Product characteristics:

     (1)Support Card Type: read and write consistent ISO14443TYPEA series cards

     (2)Computer Interface: TCP / IP interface, using the TCP communication

     (3)LCD screen: 45 * 25 dot matrix LCD screen can display characters

     (4)Operating Frequency: 13.56MHz

     (5)Operating voltage: 48V, electric current:40mA

     (6)card and communication equipment speed: 106Kbit

     (7)Working temperature: -20 ℃ ~ 60

     (8)Status Display: user-controllable buzzer

     (9)Dimensions: length × width × height: 125 * 85 * 27 mm


    TCP RFID Proximity POE Card Reader Writer With LCD Screen Desktop Usage

    TCP RFID Proximity POE Card Reader Writer With LCD Screen Desktop Usage


    connect with TP link


    TCP RFID Proximity POE Card Reader Writer With LCD Screen Desktop Usage


    Support
    ISO/IEC 14443 TypeA, TypeB (optional), ISO/IEC 15693 (optional)
    Operating System
    Windows98, XP7, LIUNX, Android
    Frequency
    13.56MHZ
    Reading Distance
    0-80mm
    Interface
    TCP/IP
    Size
    125 * 85 * 27MM
    Weight
    100G
    Operating Humidity
    -20 ℃~85℃
    Operating Temperature
    5%~95%
    Power Supply
    5V,stabilized power supply or POE power supply; maximum working current: 400mA
    Display
    Two LED indicators (Red For Mains ,Green For Status )
    Remark
    With Buzzer
    Read ID Numbers
    10 Numbers (18 numbers is optional)
